Precision Non-Contact Laser Sensor for Industrial Use
✔️ Detects 25 to 240 mm range with IP68 rugged laser sensor

The LR-ZB240CB is a compact, distance-based laser sensor designed for industrial automation. It provides precise, non-contact distance measurements ideal for edge detection, gap control, and alignment on busy production lines. Built to endure harsh factory floors, it delivers reliable sensing in challenging environments.

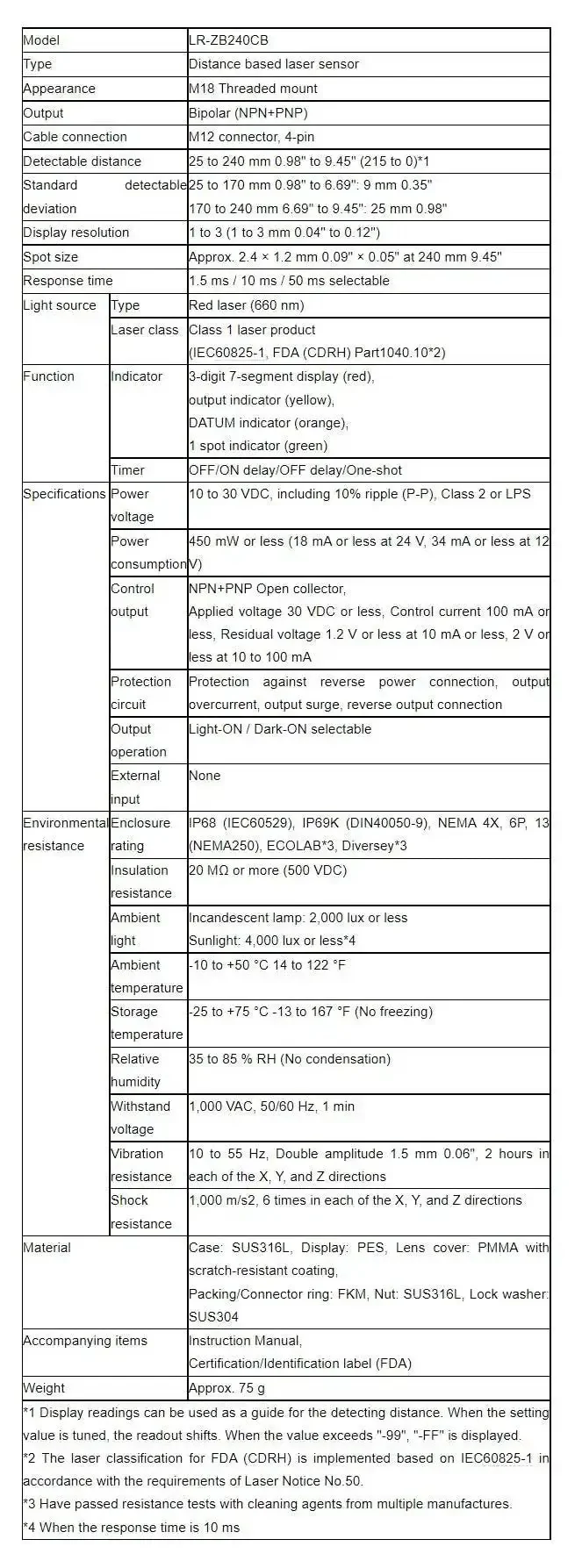

✅ Detectable distance: 25 to 240 mm (0.98" to 9.45")
✅ Output: Bipolar (NPN+PNP) Open-collector, up to 30 VDC
✅ Light source: Red laser 660 nm, Class 1 laser product
✅ Power and protection: 10 to 30 VDC, reverse power protection, 450 mW max
✅ Mounting and connection: M18 threaded mount, M12 4-pin connector
✅ Protection and environment: IP68, IP69K, NEMA 4X/6P/13; operating -10 to +50 °C
✅ Response time: 1.5 ms / 10 ms / 50 ms selectable
✅ Weight: approx. 75 g

💡 What is a laser distance sensor used for in precision industrial automation?

This handy device provides fast, non-contact distance data that improves alignment and control on production lines.

• Non-contact distance measurement enables precise part positioning in automation
• Rugged IP68/IP69K protection handles vibration, dust, and washdowns
• Flexible wiring with NPN/PNP outputs and adjustable response times
• 660 nm red laser, Class 1 safety keeps operator risk low
