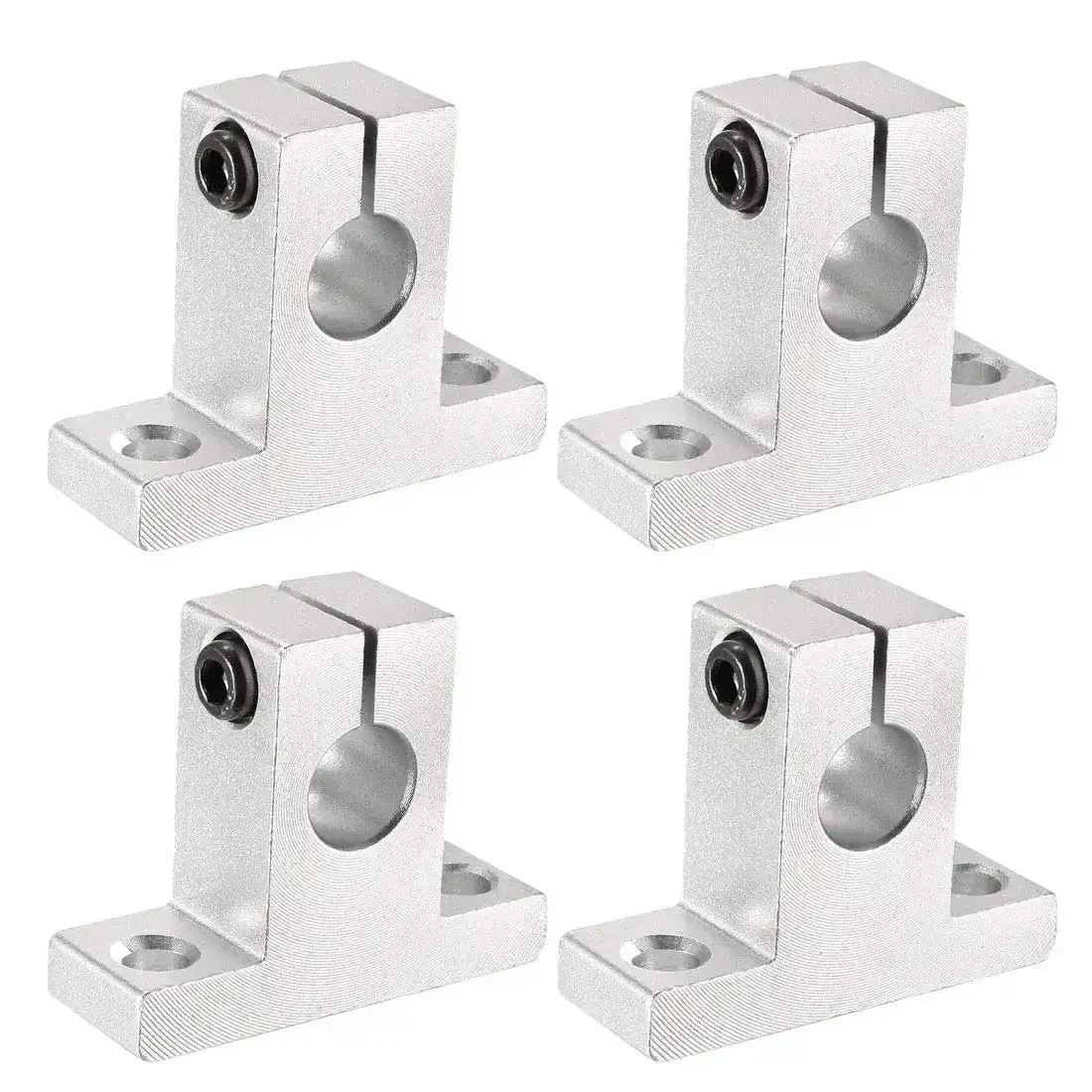

Four Piece SK10 Aluminum Linear Rail Guides for 10mm Shafts
✔️ 4 clamps, 10mm shaft, 5.5mm holes, 42x14x33mm

These aluminum rail clamps are designed to mount with SK10 linear rails, guiding 10mm shafts with smooth, high-precision movement in CNC machines, 3D printers, and measurement rigs.

✅ Model: SK10
✅ Shaft diameter: 10 mm (0.39 in)
✅ Mount hole diameter: 5.5 mm (0.22 in)
✅ Mount hole distance: 32 mm (1.26 in)
✅ Overall size: 42 mm x 14 mm x 33 mm (1.65 in x 0.55 in x 1.30 in)
✅ Total weight: 100 g (0.22 lb)

Dimension	Metric	Imperial
Shaft diameter	10 mm	0.39 in
Mount hole diameter	5.5 mm	0.22 in
Mount hole distance	32 mm	1.26 in
Overall size (LxWxH)	42 x 14 x 33 mm	1.65 x 0.55 x 1.30 in
Total weight	100 g	0.22 lb

These aluminum rail clamps are designed to mount with SK10 linear rails, guiding 10mm shafts with smooth, high-precision movement in CNC machines, 3D printers, and measurement rigs.

💡 What is a rail clamp guide used for in linear motion systems?

These handy clamps keep shafts aligned and support smooth travel in compact setups.

• handy for CNC machines, 3D printers, and coordinate measuring rigs
• improves repeatability and reduces wear in guides
• easy mounting with standard 5.5 mm holes on SK10 rails
