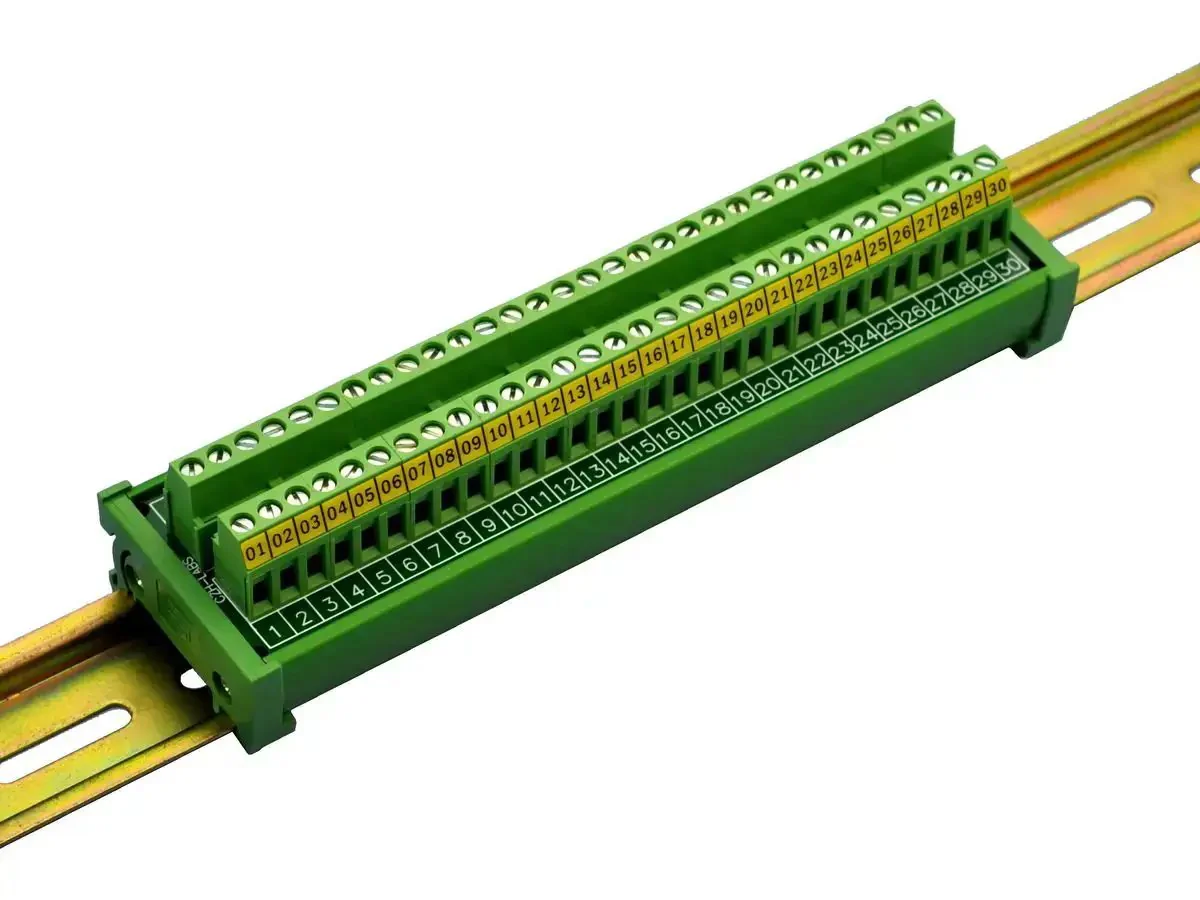

DIN Rail Mount 30-Position Screw Terminal Block Distribution Module With 24A Per Position, 400V Rating, 5.0mm Pitch, 7mm Strip Length, 26AWG To 12AWG Wire Range, Heavy Duty Industrial Terminal Block
✔️ 30-position single-unit DIN rail block: 24A per position, 400V rating, 5.0mm pitch

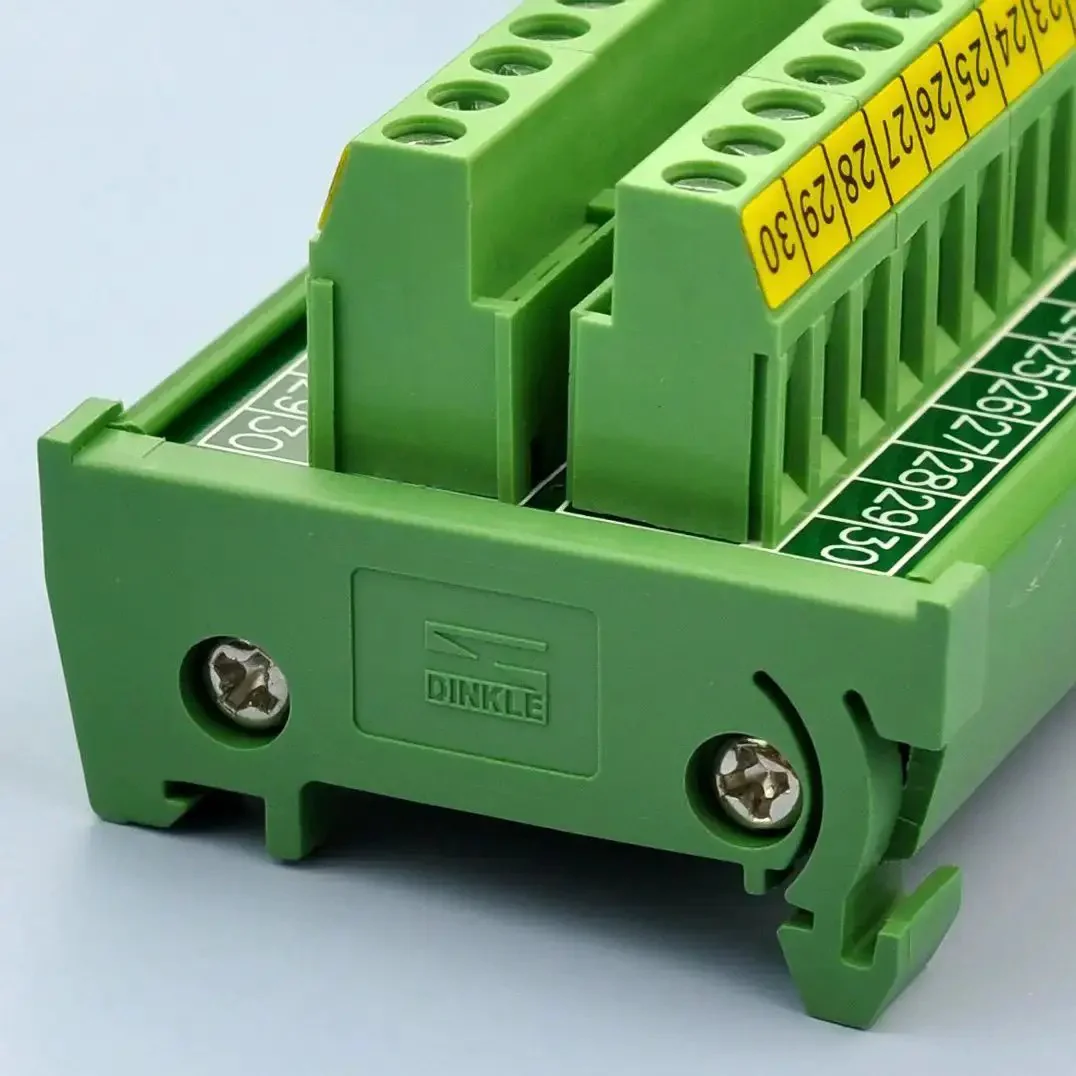

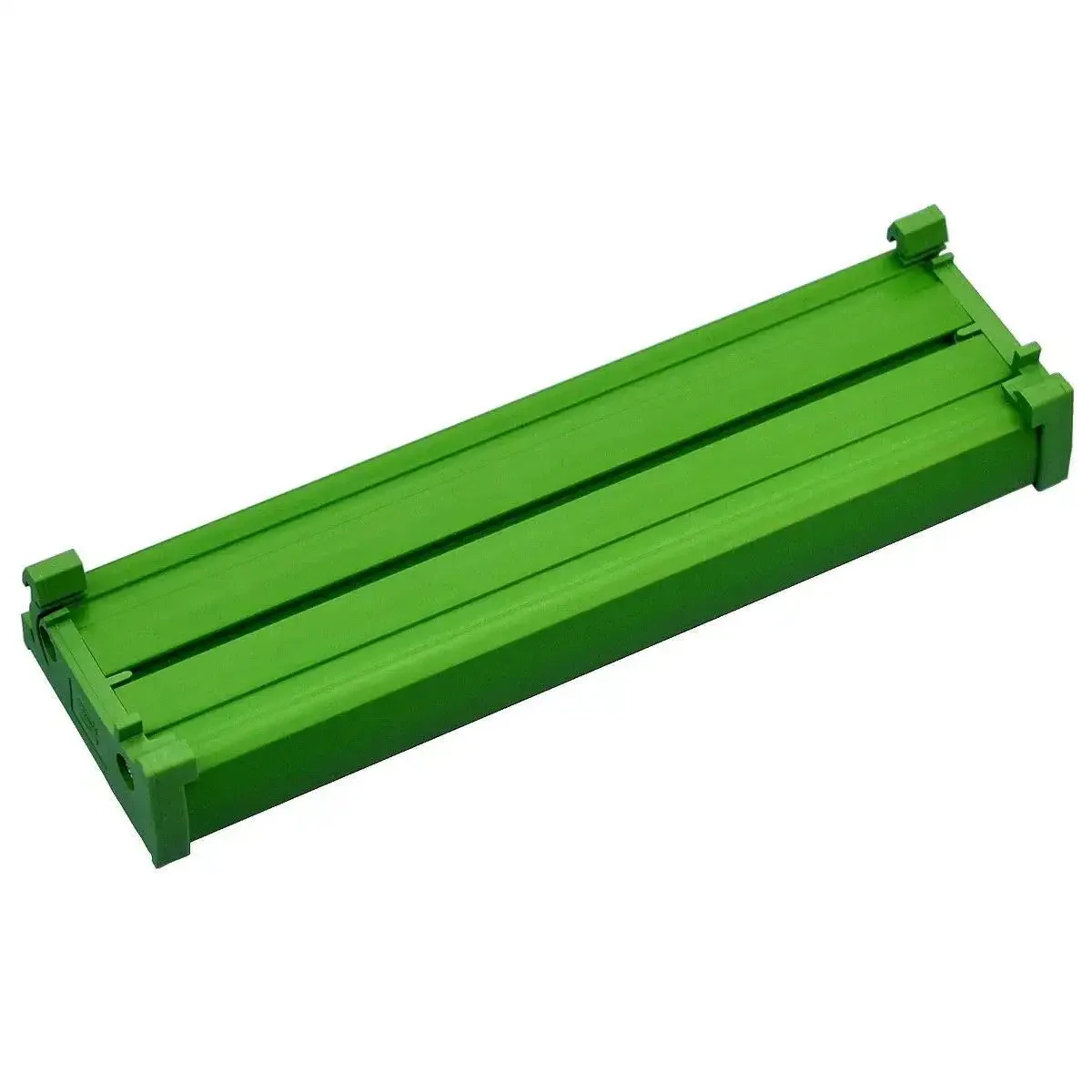

This DIN rail mounted 30-position screw terminal block distributes power and signals in control panels, automation cabinets, and heavy industrial machines. It supports 26 AWG to 12 AWG wires and is built on a high-quality Taiwan DINKLE fireproof nylon carrier for rigidity and fire resistance, with Cr3+ zinc-plated steel screws and brass pin header/cage for durability. This module is designed to fit standard 35mm DIN rails for easy integration in rugged industrial environments. External dimensions: L163mm x W48mm x H39mm (6.42" x 1.89" x 1.54").
✅ 30-position screw terminal block with 24A per position
✅ 400V insulation rating for industrial power distribution
✅ 5.0mm / 0.197" pitch for dense wiring in compact panels
✅ Wire range 26AWG to 12AWG (2.5mm²) for broad compatibility
✅ Screws M3, steel, Cr3+ Zn plated; pin header and cage brass
✅ External dimensions: 163mm L x 48mm W x 39mm H (6.42" x 1.89" x 1.54")
💡 What is a DIN rail terminal block used for in automation panels?
A handy wiring hub that keeps power and signals tidy inside control enclosures. - Termination and distribution of wires on a DIN rail in control panels - Helps organize high-current and low-current circuits in one place - Compatible with 26 AWG to 12 AWG wires and 400V rated systems - Improves serviceability, fault tracing, and future upgrades in industrial setupsProduct Information
Product Information
Shipping & Returns
Shipping & Returns
DIN Rail Mount 30-Position Screw Terminal Block Distribution Module With 24A Per Position, 400V Rating, 5.0mm Pitch, 7mm Strip Length, 26AWG To 12AWG Wire Range, Heavy Duty Industrial Terminal Block
DIN Rail Mount 30-Position Screw Terminal Block Distribution Module With 24A Per Position, 400V Rating, 5.0mm Pitch, 7mm Strip Length, 26AWG To 12AWG Wire Range, Heavy Duty Industrial Terminal Block
✔️ 30-position single-unit DIN rail block: 24A per position, 400V rating, 5.0mm pitch
This DIN rail mounted 30-position screw terminal block distributes power and signals in control panels, automation cabinets, and heavy industrial machines. It supports 26 AWG to 12 AWG wires and is built on a high-quality Taiwan DINKLE fireproof nylon carrier for rigidity and fire resistance, with Cr3+ zinc-plated steel screws and brass pin header/cage for durability. This module is designed to fit standard 35mm DIN rails for easy integration in rugged industrial environments. External dimensions: L163mm x W48mm x H39mm (6.42" x 1.89" x 1.54").
✅ 30-position screw terminal block with 24A per position
✅ 400V insulation rating for industrial power distribution
✅ 5.0mm / 0.197" pitch for dense wiring in compact panels
✅ Wire range 26AWG to 12AWG (2.5mm²) for broad compatibility
✅ Screws M3, steel, Cr3+ Zn plated; pin header and cage brass
✅ External dimensions: 163mm L x 48mm W x 39mm H (6.42" x 1.89" x 1.54")
💡 What is a DIN rail terminal block used for in automation panels?
A handy wiring hub that keeps power and signals tidy inside control enclosures. - Termination and distribution of wires on a DIN rail in control panels - Helps organize high-current and low-current circuits in one place - Compatible with 26 AWG to 12 AWG wires and 400V rated systems - Improves serviceability, fault tracing, and future upgrades in industrial setupsProduct Information
Product Information
Shipping & Returns
Shipping & Returns
Description
✔️ 30-position single-unit DIN rail block: 24A per position, 400V rating, 5.0mm pitch
This DIN rail mounted 30-position screw terminal block distributes power and signals in control panels, automation cabinets, and heavy industrial machines. It supports 26 AWG to 12 AWG wires and is built on a high-quality Taiwan DINKLE fireproof nylon carrier for rigidity and fire resistance, with Cr3+ zinc-plated steel screws and brass pin header/cage for durability. This module is designed to fit standard 35mm DIN rails for easy integration in rugged industrial environments. External dimensions: L163mm x W48mm x H39mm (6.42" x 1.89" x 1.54").
✅ 30-position screw terminal block with 24A per position
✅ 400V insulation rating for industrial power distribution
✅ 5.0mm / 0.197" pitch for dense wiring in compact panels
✅ Wire range 26AWG to 12AWG (2.5mm²) for broad compatibility
✅ Screws M3, steel, Cr3+ Zn plated; pin header and cage brass
✅ External dimensions: 163mm L x 48mm W x 39mm H (6.42" x 1.89" x 1.54")
💡 What is a DIN rail terminal block used for in automation panels?
A handy wiring hub that keeps power and signals tidy inside control enclosures. - Termination and distribution of wires on a DIN rail in control panels - Helps organize high-current and low-current circuits in one place - Compatible with 26 AWG to 12 AWG wires and 400V rated systems - Improves serviceability, fault tracing, and future upgrades in industrial setups
