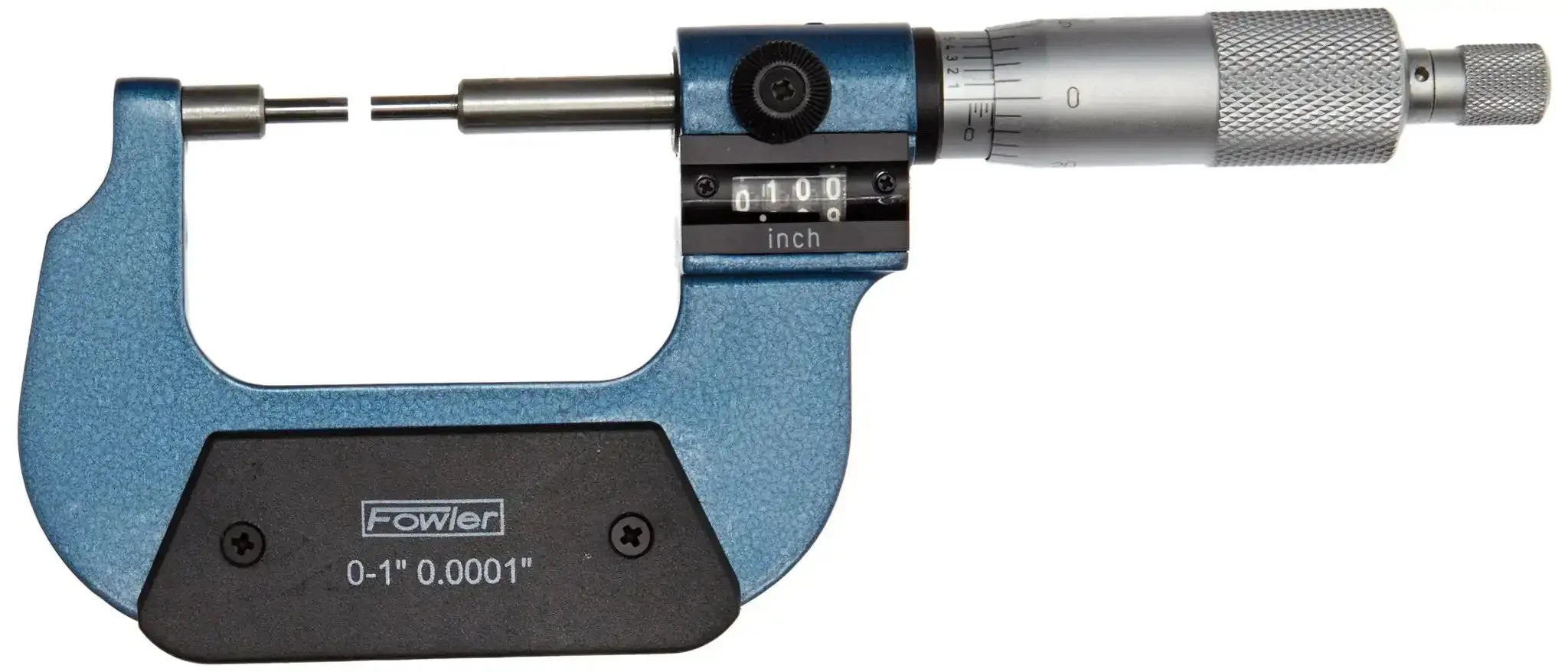

Digit Counter Spline Micrometer 0-1 in OD, single unit
✔️ 0-1" range, digital readout 0.001", Vernier 0.0001", accuracy 0.0001"

This precision outside micrometer uses a spline-style anvil/spindle to measure the outside diameter of splines, grooves, and recesses. It's designed for precision work in machining, gear manufacturing, and auto applications.

✅ 0-1 inch measuring range for outside diameters of splines, grooves, and recesses
✅ Digit display with 0.001 inch increments and Vernier 0.0001 inch for precise readings
✅ Overall accuracy 0.0001 inch for tight tolerances
✅ Hardened, precision-ground anvil/spindle with 0.00002" flatness and 0.00005" parallelism
✅ Ratchet stop provides constant force for repeatable measurements
✅ 0.118" spline face diameter and 0.396" spline length for small recesses
✅ Includes wrench and fitted case for protection and portability

💡 What is a spline micrometer used for in precision machining? This handy tool helps ensure accurate outside-diameter measurements in gear and spline applications. - It provides precise outside-diameter readings for splines, grooves, and recesses - It combines a digit display (0.001") with a Vernier (0.0001") for tight tolerance control - Hardened, micro-lapped faces deliver 0.00002" flatness and 0.00005" parallelism - Ratchet stop maintains consistent force between operators for repeatable results
