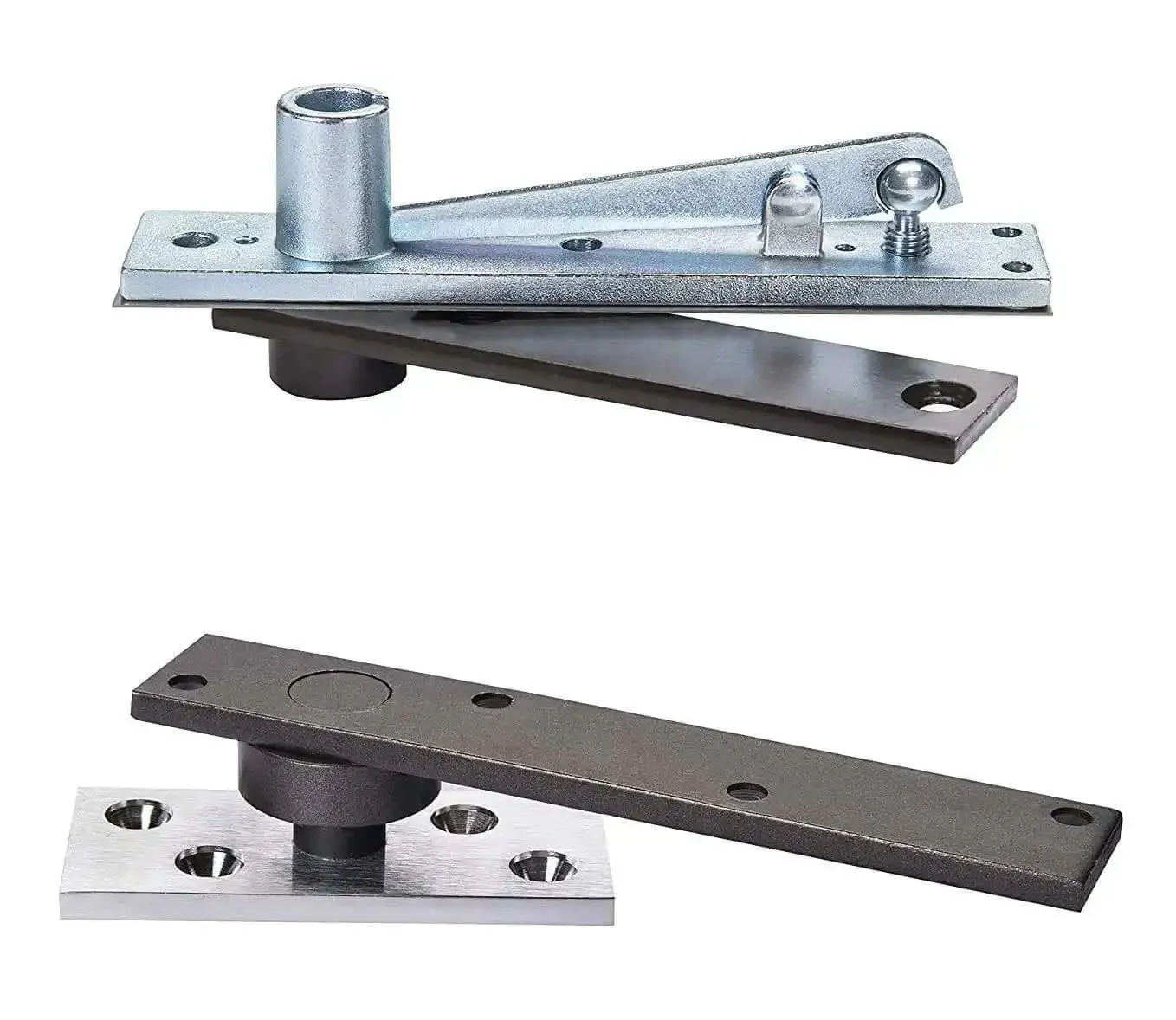

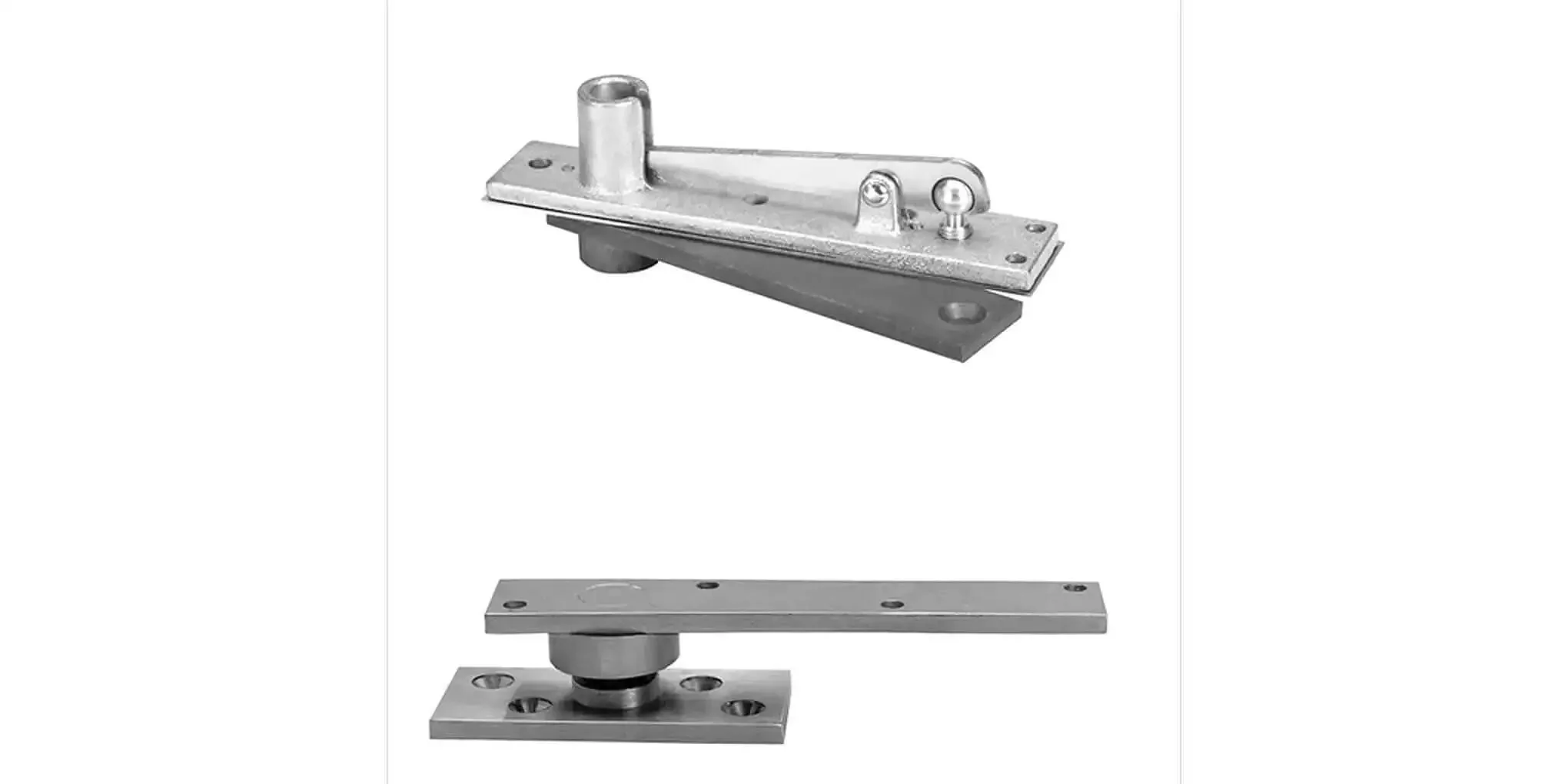

Center Hung Pivot Door Hinge Set For Interior Or Exterior Doors Up To 3 Ft 8 In Wide By 8 Ft 6 In High Model 370 Built Tough Heavy Duty 500 Lb Capacity Satin Chrome Finish 626 ANSI A156.4 Certified Architectural Hardware
✔️ 500 lb center hung pivot, fits up to 1118 x 2591 mm
Heavy duty center hung pivot set designed for interior or exterior doors, rated to handle up to 500 lb. This kit supports floor and jamb mounting with a non handed design and includes the standard top pivot 340 for easy installation. Suitable for doors up to 3'8" x 8'6" (1118 x 2591 mm) and finished in satin chrome for a clean architectural look.
✅ 500 lb capacity
✅ Door sizes up to 3'8" x 8'6" (1118 x 2591 mm)
✅ Center hung, floor mounted bottom pivot
✅ Sealed bearings protect from weather and debris
✅ Satin Chrome finish 626; ANSI/BHMA A156.4 certified
✅ Not for labeled doors and frames
✅ Includes mounting screws
💡 What is a center hung pivot door hinge used for? It’s a handy solution for hanging heavy doors while keeping the pivot hardware discreet and aligned for smooth operation. - Handy for doors up to 500 lb - Keeps load balanced with a centered pivot - Sealed bearings resist weather and debris
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Center Hung Pivot Door Hinge Set For Interior Or Exterior Doors Up To 3 Ft 8 In Wide By 8 Ft 6 In High Model 370 Built Tough Heavy Duty 500 Lb Capacity Satin Chrome Finish 626 ANSI A156.4 Certified Architectural Hardware
Center Hung Pivot Door Hinge Set For Interior Or Exterior Doors Up To 3 Ft 8 In Wide By 8 Ft 6 In High Model 370 Built Tough Heavy Duty 500 Lb Capacity Satin Chrome Finish 626 ANSI A156.4 Certified Architectural Hardware
✔️ 500 lb center hung pivot, fits up to 1118 x 2591 mm
Heavy duty center hung pivot set designed for interior or exterior doors, rated to handle up to 500 lb. This kit supports floor and jamb mounting with a non handed design and includes the standard top pivot 340 for easy installation. Suitable for doors up to 3'8" x 8'6" (1118 x 2591 mm) and finished in satin chrome for a clean architectural look.
✅ 500 lb capacity
✅ Door sizes up to 3'8" x 8'6" (1118 x 2591 mm)
✅ Center hung, floor mounted bottom pivot
✅ Sealed bearings protect from weather and debris
✅ Satin Chrome finish 626; ANSI/BHMA A156.4 certified
✅ Not for labeled doors and frames
✅ Includes mounting screws
💡 What is a center hung pivot door hinge used for? It’s a handy solution for hanging heavy doors while keeping the pivot hardware discreet and aligned for smooth operation. - Handy for doors up to 500 lb - Keeps load balanced with a centered pivot - Sealed bearings resist weather and debris
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
✔️ 500 lb center hung pivot, fits up to 1118 x 2591 mm
Heavy duty center hung pivot set designed for interior or exterior doors, rated to handle up to 500 lb. This kit supports floor and jamb mounting with a non handed design and includes the standard top pivot 340 for easy installation. Suitable for doors up to 3'8" x 8'6" (1118 x 2591 mm) and finished in satin chrome for a clean architectural look.
✅ 500 lb capacity
✅ Door sizes up to 3'8" x 8'6" (1118 x 2591 mm)
✅ Center hung, floor mounted bottom pivot
✅ Sealed bearings protect from weather and debris
✅ Satin Chrome finish 626; ANSI/BHMA A156.4 certified
✅ Not for labeled doors and frames
✅ Includes mounting screws
💡 What is a center hung pivot door hinge used for? It’s a handy solution for hanging heavy doors while keeping the pivot hardware discreet and aligned for smooth operation. - Handy for doors up to 500 lb - Keeps load balanced with a centered pivot - Sealed bearings resist weather and debris
